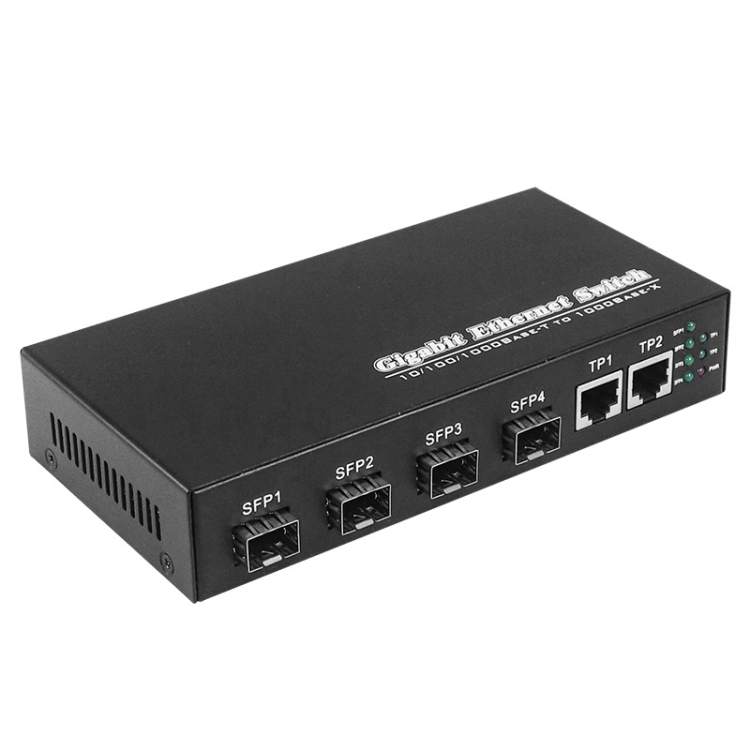

Media Converter 2 Puertos RJ45 y 4 Puertos SFP 1 Gigabit Fibra Optica
SKU: 4F2E-SFP
Marca: Zenhon
- Este conmutador Gigabit Ethernet de 4 puertos está equipado, con 4 puertos UTP 10/100/1000M y 2 puertos SFP 1000M. El usuario final puede elegir diferentes módulos SFP 1000M según su demanda, como 1000Base-T, 1000Base-SX o 1000Base-LX, etc. El producto es de tamaño compacto, rendimiento estable y excelente calidad. Se aplica ampliamente en redes Ethernet de fibra óptica pequeñas o medianas.
$48.00
Precio en soles: S/182.40
(Precios incluyen IGV)
AGREGAR A CARRITO
- Compártelo con:
CARACTERÍSTICAS:
1. Specifications: 4 SFP fiber optic ports + 2 RJ45 ports Gigabit fiber optic converter 2. Transmission rate: 1000Mbps 3. Fiber mode: single mode single fiber 4. Interface type: SC interface 5. Transmission distance: 3-5km 6. Product weight: 495g 7. Working voltage: DC 5V 2A 8. Working temperature: -10 to 60 degrees Celsius 9. Working wavelength: -A side: TX1310nm/RX1550nm -B end: TX1550nm/RX1310nm 10. Dimensions: 170 x 90 x 32mm |
|
ESPECIFICACIONES:
Model | TBD06030063 |
Operating standards | IEEE802.3z/AB, I10/100/1000Base-T,1000Base-SX/LX, |
MAC address table | 1K |
Frame buffer memory | 2MB |
Switching capacity | 12G |
Connector: UTP | RJ-45 10/100/1000Mbps |
SFP slot 1000Mbps | |
Cable: UTP | Cat.5 or 6 UTP (Max distance up to 100m) |
Multimode Fiber | 50/125, 62.5/125μm (Max distance up to 224/550m depending on the SFP Model used) |
Single mode Fiber | 9/125μm (Max distance up to 10~100 km/2KM depending on the SFP Model used) |
Flow control | Full Duplex: IEEE802.3x flow control |
Half Duplex: back pressure flow control | |
LED | PWR,F1 Link/Act, F2 Link/Act;TP1~TP4 Link/Act, TP1~TP4 100, TP1~TP4 1000 |
Power Requirement | AC220V(100-240V),50~60Hz; DC:5V,2A |
Ambient Temperature | 0 ~ +50℃ |
Storage Temperature | -20 ~ +70℃ |
Humidity | 5% ~ 90% |
Dimensions | 25×180×100 mm |
